Jorc - Condensate Drain Heater 1/2" NPT, 230 PSI

Original price $651.00 - Original price $651.00
Original price
$651.00
$651.00 - $651.00
Current price $651.00
SKU 38135

Lead Time:

Generally Ships in 1-3 Days

Voltage: 115 VAC

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

In very cold temperatures, condensate may run the risk of freezing when it does not continuously flow through the system.
The DRAIN HEATER guarantees a continuous condensate flow in all systems where you have trouble keeping the condensate flowing due to extreme cold weathers.

The DRAIN HEATER can be installed on the SMART GUARD, MAG-11 and POD-TD models.

Please note; if the pipework leading up to and leading from the drain is insulated, then the drain will typically not require any anti-freezing device. JORC drains are produced from materials that will operate in extreme cold weather conditions. Often the desire to apply anti-freezing devices on drains is derived from situations wherein competitive product experiences have formed a mind-set.

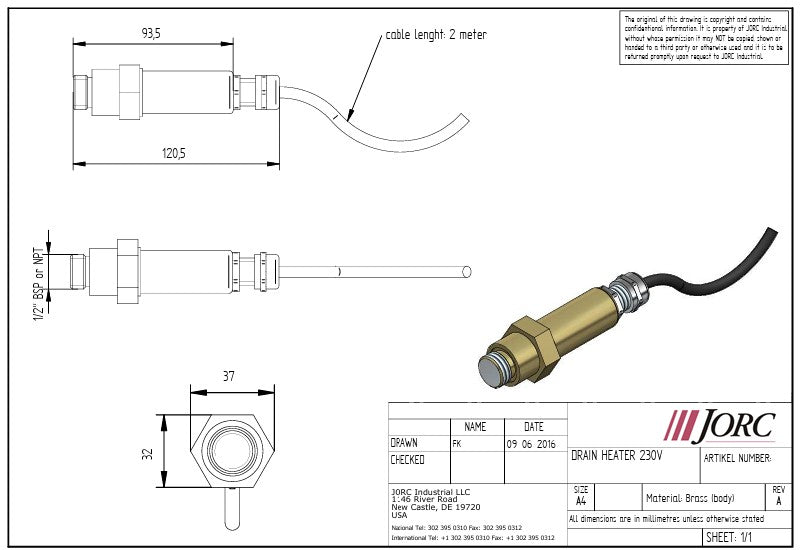

SPECIFICATIONS

VOLTAGE SUPPLY 230VAC or 115VAC
POWER CONSUMPTION 230V 0,5A
POWER CONSUMPTION 115V 1,1A
MAX. PRESSURE 435 PSI
THREAD SIZE 1/2" NPT
HEX. SIZE 32mm
CABLE LENGTH 6.5 ft.
HOUSING MATERIAL Brass and Stainless steel
ENVIRONMENTAL PROTECTION NEMA4 (IP65)
THERMOSTAT BODY <+40 °F ON / >+60 °F OFF
THERMOSTAT HEAD <+105 °F ON / >+150 °F OFF
APPLICABLE TEMPERATURE -13 °F / +40 °F
APPLIANCE CLASS 1 (earth)
