Description

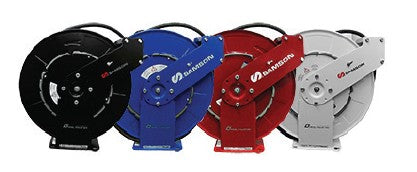

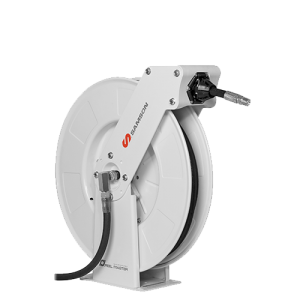

Designed for intensive-duty use, the Samson 504 Series HD Double Pedestal Arm Hose Reel is built to withstand constant operation in the toughest industrial and automotive environments. With a rugged full metal construction, fatigue-resistant steel spring, and fully ported shaft for unrestricted flow, this hose reel ensures durability, efficiency, and long-term reliability. Whether you're working in fleet maintenance, lube trucks, service shops, mining, manufacturing, or mass transit, this heavy-duty hose reel provides exceptional performance while keeping hoses organized and protected.
Key Features & Benefits
✔ Heavy-Duty Full Metal Construction – Built to withstand extreme use in intensive-duty applications such as industrial, automotive, and construction environments.
✔ Fatigue-Resistant Steel Spring – Provides even tension for smooth hose retraction, reducing strain and extending the life of the reel.
✔ Fully Ported Shaft & Swivel – Designed for maximum flow efficiency, eliminating restrictions for better performance.
✔ Spool Mounted on Sealed Ball Bearings – Permanently lubricated for smooth retraction and reduced torque load on the spring, ensuring longer life and reliability.
✔ Large Latching Area – Makes operation easier, even in high-use environments.
✔ Adjustable Hose Guide Arm – Offers four mounting positions (floor, wall, ceiling, and tank) for flexibility in any workspace.
✔ Narrow Footprint Design – Allows for multiple reels to be mounted in the same area, optimizing space and efficiency.
✔ Includes 30” Inlet Hose & Ball Stop – Ensures smooth retraction and prevents hose damage.
Ideal for These Industries
🔧 Car & Truck Dealerships
🔧 Fleet Maintenance & Service Shops
🔧 General Manufacturing & Industrial Use
🔧 Mining & Construction Equipment Maintenance
🔧 Lube Trucks & Service Stations
🔧 Mass Transit & Railroad Operations
🔧 Large Woodshops

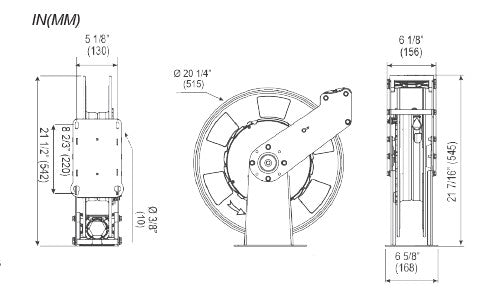

Technical Specifications
📏 Hose Capacity: 50’ x 3/8” NPT(M) or 50’ x 1/2” NPT(M)
🔩 Outlet Thread: 3/8" NPT(M), 1/2" NPT(M)
💨 Max Working Pressure: 300 PSI
🛠️ Mounting Positions: Ceiling, Wall, Floor, or Tank
Why Buy from Compressed Air Advisors Online?
At Compressed Air Advisors Online, we provide industry-leading expertise, competitive pricing, and fast shipping to get you the best equipment without delays.
💨 Upgrade your workspace with the Samson 504 Series HD Hose Reel today! Click Add to Cart and invest in a high-performance, durable solution trusted by professionals
