Description

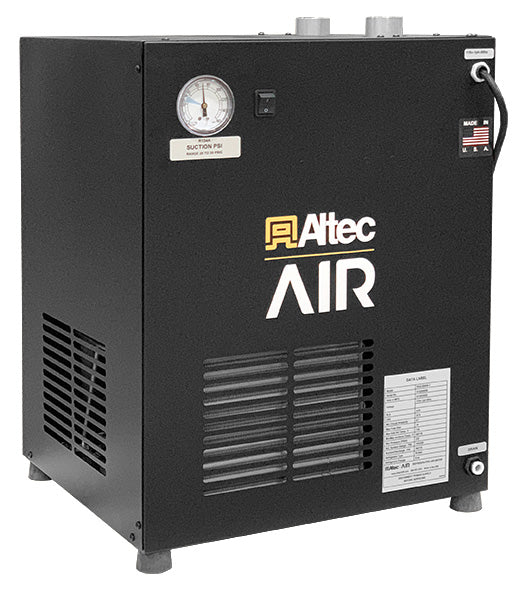

Experience superior air treatment with the Altec AIR RHT-0100 100 CFM RHT Series High Inlet Temperature Refrigerated Air Dryer. Made in the USA, this high-performance dryer is ideal for tank-mounted piston-type air compressors without after-coolers.

Key Features:

• Does not require Separate After Coolers, Separators, or Drains
• High Inlet Temperature - Up to 200°F
• Consistent & Reliable Dry Air - ISO Class 6
• Compact All-Aluminum Heat Exchanger Modules with Low Pressure Drops
• Programmable Automatic Electronic Drains
• Easy-Access Cabinet Design for Ease of Maintenance & Serviceability
• Top Mounted Inlet & Outlet Connections Allow for Easy Installation of Dryer, Filters, & Bypass Valves

Designed for Efficiency: Altec AIR Refrigerated Air Dryers utilize refrigeration cooling to condense moisture and remove it from compressed air systems. Here's how it works:

1. Warm saturated air enters a pre-cooler/re-heater heat exchanger at the dryer inlet and is pre-cooled by outgoing cold air.
2. The pre-cooled air then enters the air-to-refrigerant heat exchanger and is cooled to its lowest point.
3. As the air is cooled, the moisture it contains changes from a vapor to a liquid and is removed by a stainless-steel mesh separator and discharged from the dryer through an automatic drain valve.
4. The cold air is re-heated by incoming warm air as it passes back through the pre-cooler/re-heater.
5. The resulting warm, clean, and dry air is ready for use by a compressed air system.

Additional Specifications:

• Drain Port: 1/4" NPT
• Maximum Pressure: 232 PSIG
• Maximum Inlet Temperature: 200°F / 93°C
• ETL Listed Configurations (Pending)
• Consistent & Reliable Dry Air ISO Class Dew Points @ 100°F / 38°C
• Saturated Inlet - Model Specific Ratings
• Industrial-Grade Refrigeration System Built to last compressors from industry-leading North American manufacturers
• Environmentally Friendly Refrigerants: All Refrigerated Air Dryer models use only R134a & R404a refrigerants

Ensure your compressed air system operates at peak efficiency with the Altec AIR RHT-0100 100 CFM RHT Series High Inlet Temperature Refrigerated Air Dryer. Order yours today!
