Description

Built to Outperform. Designed to Outlast.

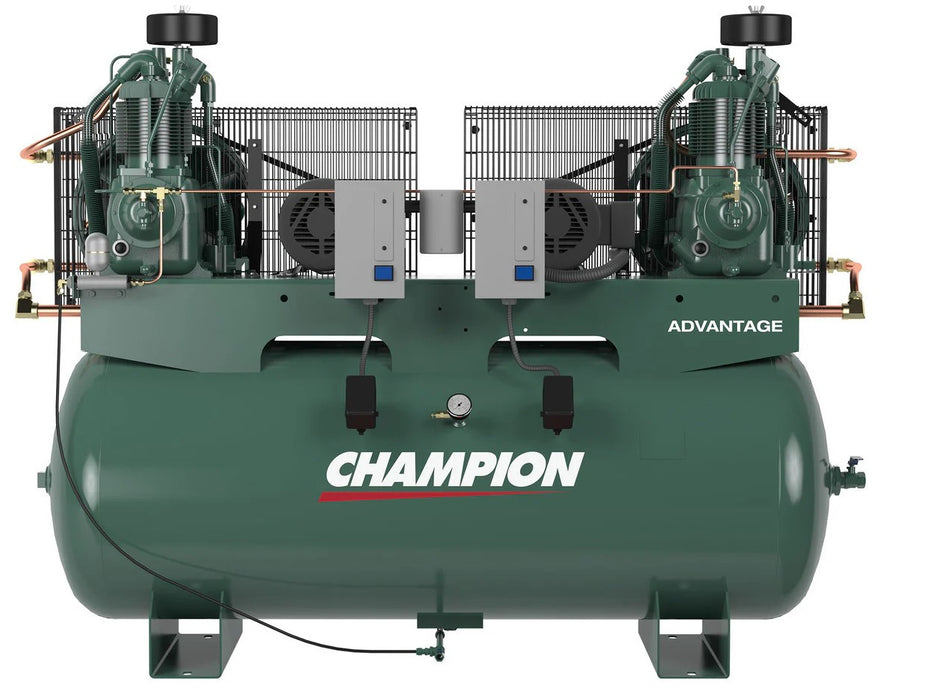

The Champion HR5D-12 Advantage Series Duplex Air Compressor is the industrial-grade solution for operations that demand dependable, high-volume compressed air—day in and day out. With dual 5 HP motors (10 HP total), a heavy-duty 120-gallon horizontal tank, and the legendary R-Series pump, this machine is built for serious uptime.

Champion’s Advantage Series delivers performance and protection with a suite of standard features—no upcharges required. This isn’t just a compressor. It’s a workhorse that’s trusted in shops, plants, and job sites across the country.

🔧 Key Features:

• R15 Two-Stage Pump (737 RPM) – Smooth, low-speed operation for long life

• 34.6 CFM @ 175 PSI – Consistent performance for multi-user environments

• 120-Gallon Horizontal ASME Tank – Built tough and built to code

• Mounted NEMA 1 Control Panel – Simple, centralized controls

• Electric Auto Tank Drain – Keeps maintenance to a minimum

• Low Oil Stop Control & High Temp Switch – Standard NEMA 4-rated protection

• Hour Meter & TOA Switch – Monitor performance with ease

• Enclosed Belt Guard + Vibration Isolators – Safety and quiet operation

• Air-Cooled Aftercooler (on select models) – Enhances efficiency and system life

🛠️ Perfect For:

• Automotive Shops

• Machine Shops

• Manufacturing Facilities

• Woodworking Businesses

• Any high-demand air system with multiple users

Why Buy From Compressed Air Advisors Online?
We’ve been the go-to pros for over a decade. Our expert team is here to help you choose the right compressor, answer your technical questions, and ensure you get the right product—every time. Free shipping. No guesswork. Real support.

Specifications:

• Model: HR5D-12

• Horsepower: 10 HP (5 HP x 2)

• Pump: R15, 737 RPM

• Tank Size: 120 Gallons – Horizontal

• Air Delivery: 34.6 CFM @ 175 PSI

• Weight: 985 lbs

• Power: 208V / 3 Phase, 230V / 3 Phase 230V / 1 Phase

Champion Advantage HR5D-12 Dimensions

Champion R15 Manual

Champion R Series Brochure
