Champion D6 Air System – 5 HP Rotary Screw Compressor – 145 PSI

The Champion D6 Air System (AS) delivers industrial rotary screw performance in a compact, fully integrated package built for continuous-duty operation.

This is not just a compressor mounted on a tank. It is a complete air solution engineered to provide clean, dry, reliable compressed air the moment it powers on.

At 145 PSI, the D6 produces 18 SCFM, making it ideal for automotive facilities, light manufacturing, woodworking operations, maintenance departments, and growing shops that have outgrown piston-style compressors.

Consistent pressure. Continuous airflow. Professional reliability.

Performance Specifications – D6 AS (145 PSI)

• Horsepower: 5 HP

• Maximum Pressure: 145 PSI

• Airflow: 18 SCFM @ 145 PSI

• Drive Configuration: Belt Drive

• Motor Speed: 1740 RPM

• Tank Size: 80 Gallon Air Receiver

• Dimensions: 66" L × 21" W × 46" H

• Weight: 665 lbs

• Noise Level: 63 dBA

• Controller: CSC50

Available Voltages

• 230V / 1 Phase

• 200V / 3 Phase

• 230V / 3 Phase

• 460V / 3 Phase

This flexibility allows the D6 to match a wide range of facility power configurations.

Complete Air System Included

Every Champion D6 Air System includes:

✔ Rotary Screw Compressor
✔ 80 Gallon Dry Tank Air Receiver
✔ Refrigerated Air Dryer
✔ 1 Micron Pre-Filter
✔ Pressure Gauge
✔ Tank Drain
✔ Separate Electrical Connections (Compressor & Dryer)

The air is dried and filtered before entering the receiver tank, dramatically reducing moisture buildup and internal corrosion. This protects downstream tools, equipment, and finished product quality.

Clean air protects your investment.

Built for 100% Duty Cycle

The D6 rotary screw platform is engineered for continuous operation. Unlike reciprocating compressors that cycle on and off, the D6 delivers stable pressure and steady airflow throughout the workday.

If your shop runs all day, your air system should too.

Integrated Design for Long-Term Reliability

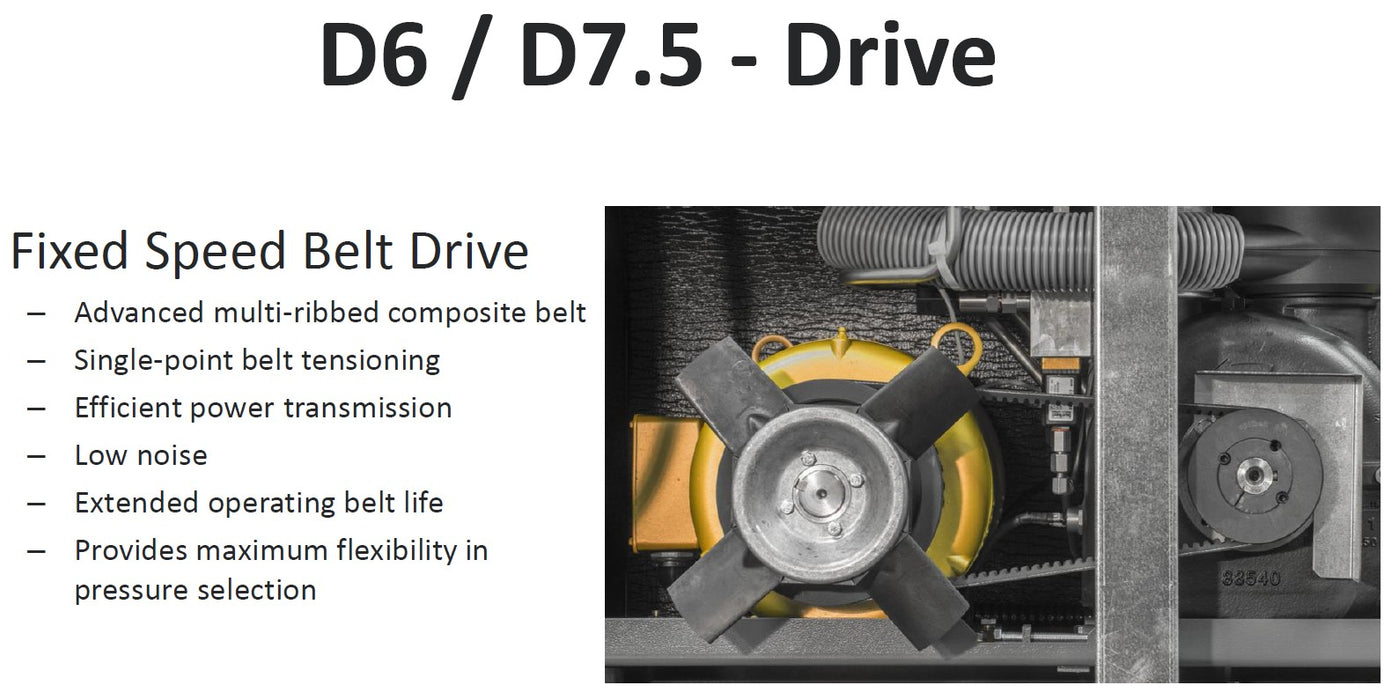

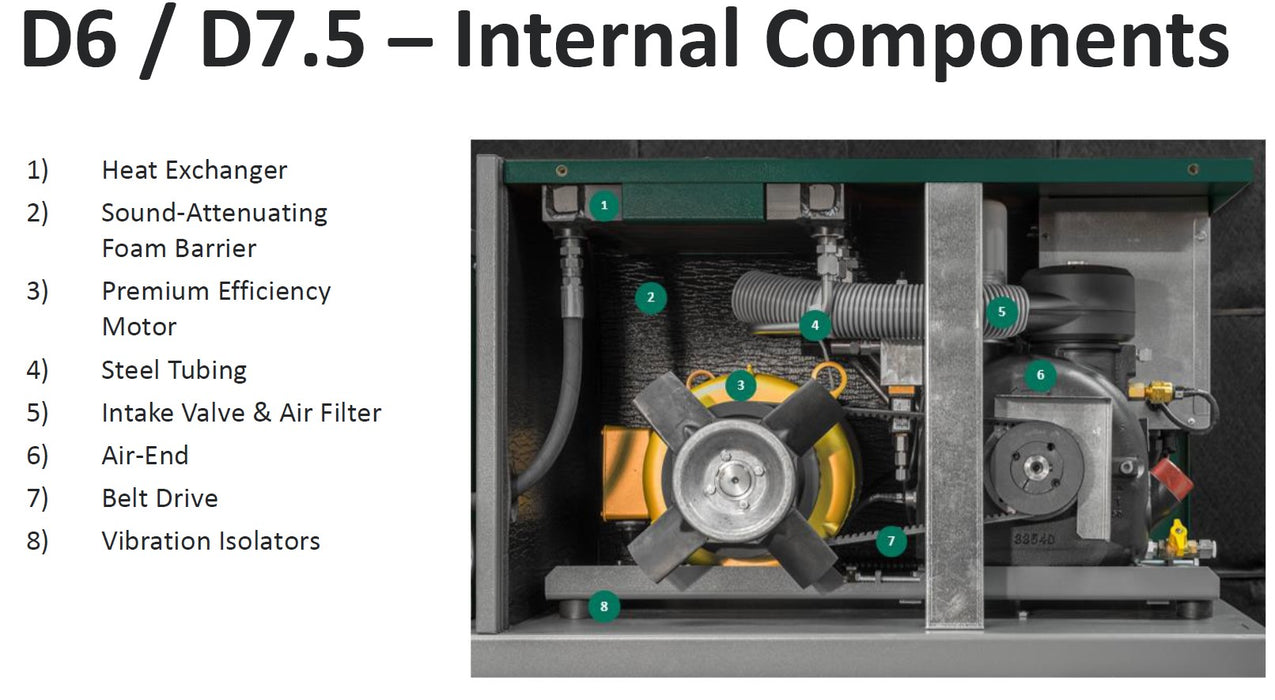

Champion’s integrated airend and combination oil/air cooler design reduce connection points and simplify service. Fewer leak paths mean improved reliability and lower maintenance stress over time.

Compact footprint. Industrial backbone.

Ideal Applications

• Automotive repair facilities

• Woodworking and cabinet shops

• Light manufacturing

• Fabrication operations

• Maintenance departments

• Packaging and assembly lines
