Champion VRV5-8 - 5hp Two Stage Reciprocating Air Compressor, 80 Gallon Vertical Air Receiver, 16.5 CFM @ 175 PSI

Original price $6,200.00
Original price $6,200.00 - Original price $6,200.00
Original price $6,200.00
Current price $3,327.00
$3,327.00 - $3,476.00
Current price $3,327.00
Save $2,873.00 Save $2,873.00
SKU VRV5-8-208V/1Ph
Voltage: 208V/1Ph
Lift Gate : No - I can get it off the delivery truck
 More payment options

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

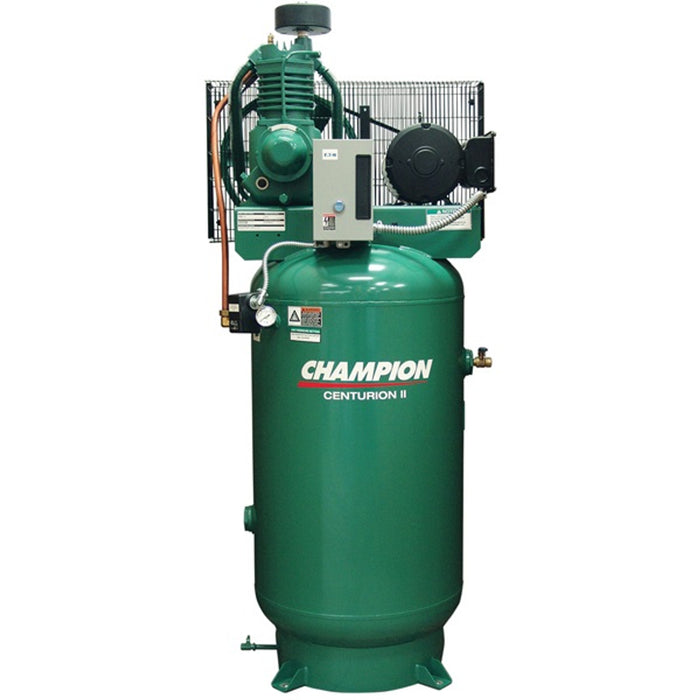

Champion VRV5-8 RV Series Air Compressor - 5 HP, 80-Gallon Vertical Tank

The Champion VRV5-8 RV Series air compressor is the ultimate solution for businesses that demand heavy-duty performance and long-lasting reliability. Ideal for; woodshops, larger repair shops, body shops, and industrial applications, this 5 HP compressor offers exceptional power and efficiency with the durability you can trust. Made in the USA*, Champion continues its legacy of over 85 years of excellence in air compressor manufacturing.

Key Features:

  • Powerful Performance: Equipped with a 5 HP, 2-stage 230V motor running at 1800 RPM, delivering 18.1 CFM @ 125 PSI, with a maximum air pressure of 16.5 CFM @ 175 PSI.
  • Durable Construction: Cast-iron cylinders, crankcase, and head ensure a rugged and long-lasting build.
  • Efficient Design: Low 805 RPM pump and deep-finned intercooler enhance cooling for extended operating hours.
  • Factory-Tested Reliability: Each pump undergoes rigorous testing to ensure optimal performance before shipment.
  • Safety Compliance: Features an OSHA-approved belt guard and an ASME-coded receiver for safety and durability.

Specifications:

  • Tank Size: 80-gallon vertical tank
  • Motor Type: NEMA-rated, single-phase motor (230V, 28 amps)
  • Air Flow: 18.1 CFM @ 125 PSI, max pressure 175 PSI
  • Pump RPM: 805
  • Dimensions: 74.8"H x 30.9"W x 35.9"D
  • Shipping Weight: 570 lbs
  • Lead Time: Built to order, 3-5 business days

Included Standard Equipment:

  • Automatic start/stop switch operation
  • Manual tank drain valve
  • 0-300 PSI pressure gauge
  • Industrial-grade intake filter silencer

Warranty Coverage:

  • 1-year complete unit warranty
  • 2-year pump warranty with service centers nationwide

Why Choose Champion?
Champion specializes exclusively in air compressors, ensuring superior craftsmanship and innovation tailored to your needs. Whether for business or hobby use, the VRV5-8 RV Series compressor is designed for years of dependable and efficient service.

Special Offer:
Enjoy FREE FREIGHT to most business addresses! Liftgate service is available for an additional $150.

Order Yours Today:
Upgrade your workshop or business with the Champion VRV5-8 air compressor. Built for heavy-duty applications, it provides exceptional value and performance that will exceed your expectations.
