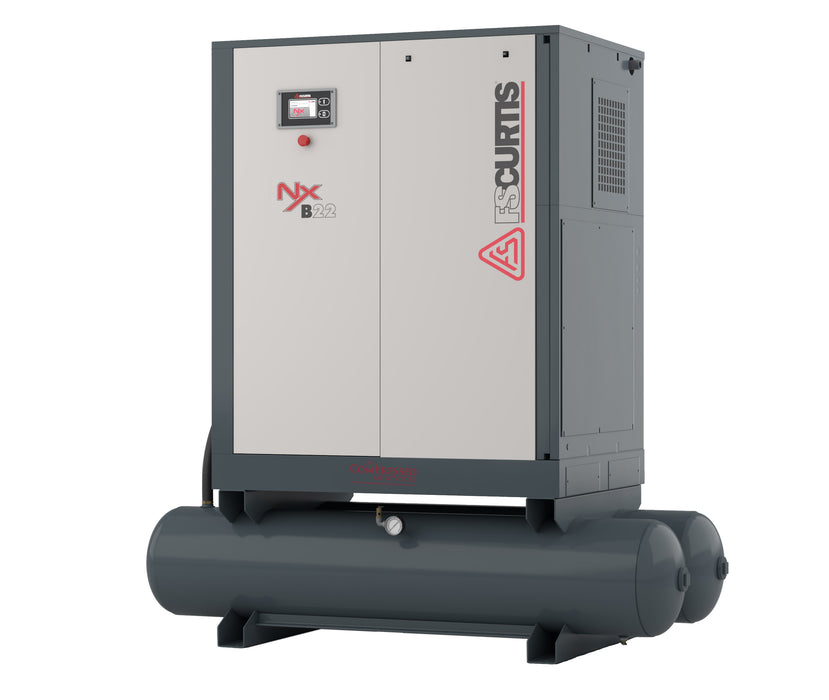

FS-Curtis NXB22 Ultrapack – 30 HP Rotary Screw Air Compressor with Integrated Dryer
Product Description
High-Capacity Air with Integrated Treatment
The FS-Curtis NXB22 Ultrapack delivers serious industrial airflow with built-in air drying in one engineered package. Designed for manufacturing facilities, multi-station automotive service centers, CNC production environments, and fabrication shops, this 30 HP rotary screw compressor provides dependable, continuous airflow and clean, dry compressed air from a single integrated system.
With up to 134 CFM at 100 PSI, the NXB22 Ultrapack is built for high-demand operations that cannot afford pressure drops, moisture contamination, or downtime.
Integrated Refrigerated Dryer & Prefilter
The Ultrapack configuration includes a factory-installed refrigerated dryer and prefilter to ensure moisture-free compressed air.
Benefits include:
-
Reduced installation complexity
-
Lower total installed cost
-
Fewer external components
-
Minimized leak points
-
Protection for CNC equipment, paint systems, plasma cutters, and air tools
-
Improved overall system efficiency
This integrated design delivers a complete compressed air solution in one footprint.
Airflow Performance (CFM by Pressure)
The NXB22 Ultrapack is available in multiple pressure configurations:
-
134 CFM @ 100 PSI
-
116 CFM @ 125 PSI
-
109 CFM @ 150 PSI
-
95 CFM @ 175 PSI
This flexibility ensures proper matching to your facility’s pressure requirements and air demand profile.
Optional iCommand Touch Controller Upgrade
The NXB22 Ultrapack can be upgraded with the advanced iCommand Touch controller, providing enhanced monitoring and system protection.
Features include:
-
Full-color touchscreen display
-
Real-time pressure and temperature monitoring
-
Maintenance scheduling and alerts
-
Fault history and diagnostics
-
Performance trending and tracking
-
Enhanced compressor protection
This upgrade is ideal for production environments focused on uptime, data visibility, and proactive maintenance.
Continuous-Duty Rotary Screw Performance
Engineered for 100% continuous duty, the NXB22 delivers smooth, pulsation-free airflow. Unlike reciprocating compressors that cycle aggressively, rotary screw technology provides:
Ideal applications include:
-
Manufacturing and assembly lines
-
Large woodworking and cabinet production facilities
-
High-volume automotive service centers
-
Fabrication and processing operations
-
Finishing and paint booths
NXGEN Extended Warranty Protection
All NX Series compressors are supported by the NXGEN Extended Warranty Program when properly registered and maintained with genuine FS-Curtis parts and lubricants:
This industry-leading coverage reflects the durability engineered into every NX platform compressor.
