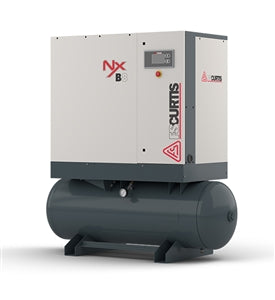

FS-Curtis NXB06 Ultrapack – 7.5 HP Rotary Screw Air Compressor with Integrated Dryer

The FS-Curtis NXB06 Ultrapack delivers powerful, clean, and dependable compressed air in a compact all-in-one package. Designed for automotive service centers, cabinet shops, woodworking facilities, and light manufacturing environments, this 7.5 HP rotary screw air compressor combines industrial-duty performance with an integrated refrigerated dryer and prefilter to ensure consistent air quality and equipment protection.

Engineered for 100% continuous duty, the NXB06 provides smooth, continuous airflow that keeps production moving without pressure fluctuations or harsh cycling.

Integrated Dryer for Cleaner, More Reliable Air

The Ultrapack configuration includes a factory-integrated refrigerated dryer and prefilter, eliminating the need for separate downstream equipment.

This integrated design:

• Saves valuable floor space

• Reduces installation time and cost

• Minimizes piping and potential leak points

• Protects air tools, paint systems, and CNC equipment

• Improves overall system efficiency

Airflow Performance (CFM by Pressure)

The NXB06 Ultrapack is available in multiple pressure configurations to match your application:

• 29 CFM @ 100 PSI

• 27 CFM @ 125 PSI

• 24 CFM @ 150 PSI

• 22 CFM @ 175 PSI

This range makes it an excellent fit for facilities that need dependable air delivery for both general shop air and higher-pressure equipment.

Optional iCommand Touch Controller Upgrade

The NXB06 Ultrapack can be equipped with the upgraded iCommand Touch controller, providing enhanced control, diagnostics, and monitoring:

• Full-color touchscreen interface

• Real-time pressure and temperature monitoring

• Maintenance reminders

• Fault history and system diagnostics

• Performance tracking and trending

• Enhanced compressor protection

This upgrade is ideal for operations that want greater system visibility and proactive maintenance management.

Built for Continuous-Duty Operation

Unlike piston compressors that aggressively start and stop, the NXB06 delivers smooth, pulsation-free airflow for:

• Multi-bay automotive shops

• CNC routers and cabinet production

• Tire and service centers

• Light fabrication and manufacturing

Quiet rotary screw operation makes it comfortable to run within the workspace.

NXGEN Extended Warranty Protection

All NX Series compressors are supported by the NXGEN Extended Warranty Program when properly registered and maintained with genuine FS-Curtis parts and lubricants:

• Five-year major components warranty

• Ten-year airend warranty

This industry-leading protection reflects the durability built into every NX platform compressor.

Why Buy from Compressed Air Advisors Online?

Compressed Air Advisors Online is America’s choice for compressed air solutions. We provide nationwide expertise to ensure your voltage, pressure, and controller configuration are correctly matched to your application.

We help you size it properly, configure it correctly, and support it long term.

Click Here To Download FS-Curtis NxB06 Tech Data

Click Here To Download FS-Curtis NxGEN Extended Warranty

Click Here To Download FS-Curtis NxB 04-06 Tank Mount W/Dryer Dimensions

Click Here To Download FS-Curtis NX 4-15 Manual

Click Here To Download FS-Curtis Nx Brochure
