Description

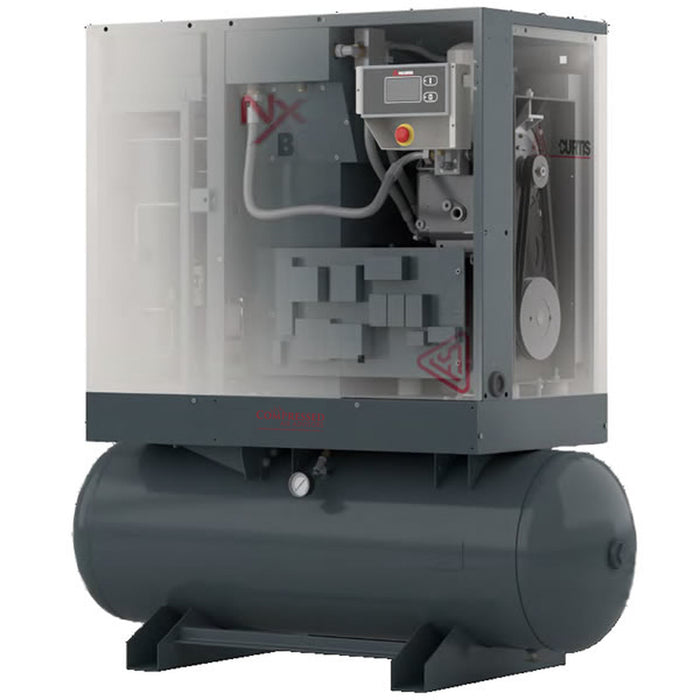

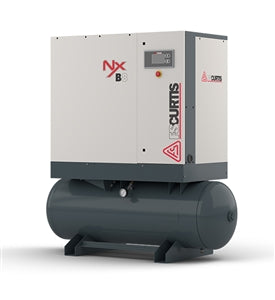

FS-Curtis NXB08 Ultrapack – 10 HP Rotary Screw Air Compressor with Integrated Dryer

Product Description

Clean, Reliable Air in One Complete Package

The FS-Curtis NXB08 Ultrapack delivers industrial-grade compressed air with built-in air treatment in one compact, space-saving system. Designed for automotive repair facilities, cabinet shops, woodworking production, and light manufacturing environments, this 10 HP rotary screw compressor combines continuous-duty performance with an integrated refrigerated dryer and prefilter to protect your equipment and improve air quality.

With up to 45 CFM at 100 PSI, the NXB08 Ultrapack is built to support multiple air tools, CNC equipment, paint systems, and production machinery without pressure fluctuations or constant cycling.

Integrated Dryer for Protected Equipment

The Ultrapack configuration includes a factory-installed refrigerated dryer and prefilter, eliminating the need for separate downstream air treatment equipment.

This integrated design:

• Saves valuable floor space

• Reduces installation time and cost

• Minimizes piping and potential leak points

• Delivers clean, dry air to protect tools and production equipment

• Improves overall system efficiency

You get a complete compressed air solution engineered to work together.

Airflow Performance (CFM by Pressure)

The NXB08 Ultrapack is available in multiple pressure configurations to match your application:

• 45 CFM @ 100 PSI

• 42 CFM @ 125 PSI

• 37 CFM @ 150 PSI

• 33 CFM @ 175 PSI

This flexibility allows you to properly size the compressor for your facility’s air demand.

Optional iCommand Touch Controller Upgrade

The NXB08 Ultrapack can be upgraded with the iCommand Touch controller, providing advanced monitoring and enhanced protection.

Features include:

• Full-color touchscreen display

• Real-time pressure and temperature monitoring

• Maintenance reminders

• Fault history and diagnostics

• Performance trending

• Enhanced compressor protection

This upgrade is ideal for operations focused on uptime, visibility, and preventative maintenance.

Built for Continuous-Duty Operation

Engineered for 100% continuous duty, the NXB08 delivers smooth, pulsation-free airflow. Unlike piston compressors that aggressively cycle on and off, rotary screw technology provides stable pressure, quieter operation, and longer equipment life.

Ideal applications include:

• Multi-bay automotive shops

• CNC woodworking and cabinet production

• Tire and service centers

• Light fabrication and manufacturing

NXGEN Extended Warranty Protection

All NX Series compressors are backed by the NXGEN Extended Warranty Program when properly registered and maintained using genuine FS-Curtis parts and lubricants:

• Five-year major components warranty

• Ten-year airend warranty

This industry-leading protection reflects the durability and engineering built into the NX platform.

Why Buy from Compressed Air Advisors Online?

Compressed Air Advisors Online is America’s choice for compressed air solutions. We provide nationwide expertise to ensure your voltage, pressure, and controller configuration are properly matched to your operation.

We help you size it correctly, configure it properly, and support it long term.

Click Here To Download FS-Curtis NxB15 Tech Data

Click Here To Download FS-Curtis NxGEN Extended Warranty

Click Here To Download FS-Curtis NxB 08-15 80 Gallon Tank Mount With Dryer Dimensions

Click Here To Download FS-Curtis NX 4-15 Manual

Click Here To Download FS-Curtis Nx Brochure
