Description

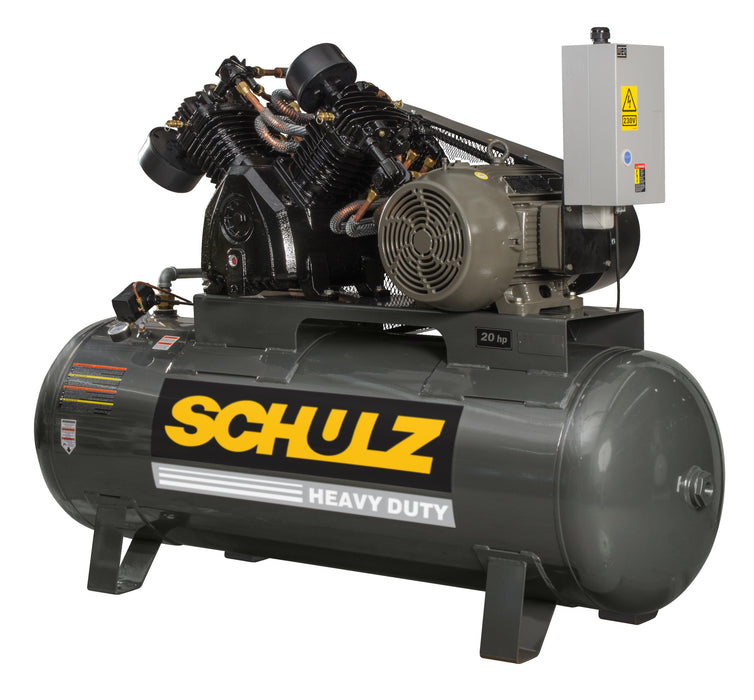

Schulz 20120HLV80BR-3 Heavy Duty Horizontal Piston Air Compressor

Unleash the full potential of your industrial operations with the Schulz 20120HLV80BR, a premium-grade air compressor designed for the most demanding applications. This powerhouse, part of the renowned L-series, delivers exceptional performance with its 20-horsepower motor and impressive air displacement of 63 CFM, all at a maximum operating pressure of 175 PSI.

Built for durability and efficiency, the Schulz 20120HLV80BR features a robust 120-gallon horizontal tank, providing extensive air storage and ensuring prolonged operation without the need for constant refilling. The compressor’s low RPM operation significantly reduces wear, while the high-quality cast iron block, coupled with a double-supported crankshaft, minimizes vibration, leading to smoother operation and extended component life.

Safety and reliability are at the heart of the Schulz 20120HLV80BR. It is equipped with ASME-certified safety valves and air tanks, ensuring compliance with industry standards. The modern reed-type valve system enhances efficiency and extends the service life of the compressor, making it a reliable choice for continuous operation in challenging environments.

For added protection and durability, the compressor includes powder-coated tanks and a solid steel belt guard. The mounted and wired magnetic starter offers a ready-to-use system, ensuring safe and convenient operation from the moment it's installed. This model is also backed by a 2-year pump warranty, providing peace of mind and long-term reliability.

The Schulz 20120HLV80BR-3 is highly recommended for various professional settings, including repair shops, service stations, tire shops, body shops, and small industries, where dependable and high-performance equipment is essential.

Key Features:

• Air Displacement: 63 CFM
• Motor Power: 20 HP
• Maximum Operating Pressure: 175 PSI
• Voltage: 208-230/460V
• Tank Size: 120 Gallon (Horizontal)
• Compressor Type: Two-Stage, Four-Piston (L-Series)
• Durability: High-quality cast iron construction with powder-coated tanks and solid steel belt guard
• Safety: ASME-certified tanks and safety valves
• Efficiency: Modern reed-type valve system and high-efficiency motor
• Convenience: Mounted and wired magnetic starter for easy and safe operation
• Warranty: 2-Year Pump Warranty
• Recommended For: Repair shops, service stations, tire shops, body shops, and small industries

Invest in the Schulz 20120HLV80BR for industry-leading performance, reliability, and efficiency in every task. Trust Schulz to deliver unmatched quality in your compressed air solutions.

Click Here to Download the Schulz Reciprocating Compressor Manual

Click Here to Open The Schulz L-Series Brochure
