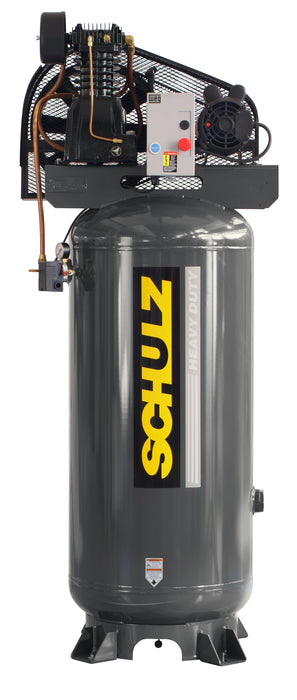

Schulz 580VL20X-1 Heavy Duty Vertical Piston Air Compressor

Elevate your operations with the Schulz 580VL20X-1, a robust and reliable air compressor designed for industrial-grade performance. Powered by a 5-horsepower motor and engineered with precision, this two-stage compressor delivers a high air displacement of 20 CFM at a maximum operating pressure of 175 PSI, making it an ideal choice for demanding applications.

Built with an 80-gallon vertical tank, the 580VL20X-1 ensures extended run times and optimal space utilization. The compressor’s two-piston, L-series design operates at low RPMs, significantly reducing wear and tear while enhancing longevity. Its high-quality cast iron construction and double-supported crankshaft minimize vibration, leading to smoother operation and longer bearing life.

Safety and efficiency are at the forefront of this compressor's design. The ASME-certified safety valve and air tank, combined with a modern reed-type valve system, provide peace of mind and exceptional product efficiency. Additionally, the powder-coated tanks and solid steel belt guard add extra durability and protection. The mounted and wired magnetic starter offers a user-friendly, ready-to-use system, ensuring safe and convenient operation right out of the box. Backed by a 2-year pump warranty, the Schulz 580VL20X-1 is built to withstand the rigors of daily industrial use.

Whether you’re powering pneumatic tools, managing large-scale manufacturing processes, or handling complex industrial tasks, the Schulz 580VL20X-1 is engineered to meet your needs with superior performance and durability. This compressor is highly recommended for repair shops, service stations, tire shops, body shops, and small industrial settings.

Key Features:

• Air Displacement: 15.6 CFM
• Motor Power: 5 HP
• Maximum Operating Pressure: 175 PSI
• Voltage: 230V/1Ph
• Tank Size: 80 Gallon (Vertical)
• Compressor Type: Two-Stage, Two-Piston (L-Series)
• Durability: High-quality cast iron construction with powder-coated tanks and solid steel belt guard
• Efficiency: Modern reed-type valve system and ASME-certified components
• Convenience: Mounted and wired magnetic starter for safe, ready-to-use operation
• Warranty: 2-Year Pump Warranty
• Recommended For: Repair shops, service stations, tire shops, body shops, and small industry

Choose the Schulz 580VL20X-1 for a dependable, high-performance air compressor that delivers exceptional results in any industrial environment.
