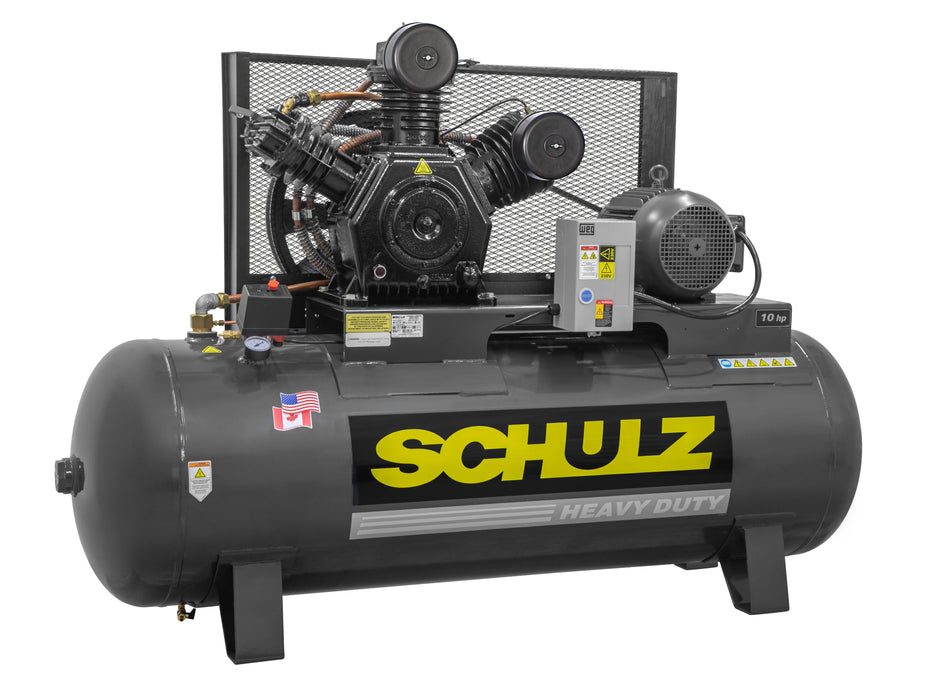

Schulz P10120HW40X-3 Premium Heavy Duty Horizontal Piston Air Compressor

The Schulz P10120HW40X-3 Premium air compressor is designed to deliver top-tier performance, combining advanced features with the reliability that professionals demand. As part of the Premium Line, this compressor ensures quality compressed air with unmatched convenience and safety, making it an ideal choice for a wide range of industrial applications.

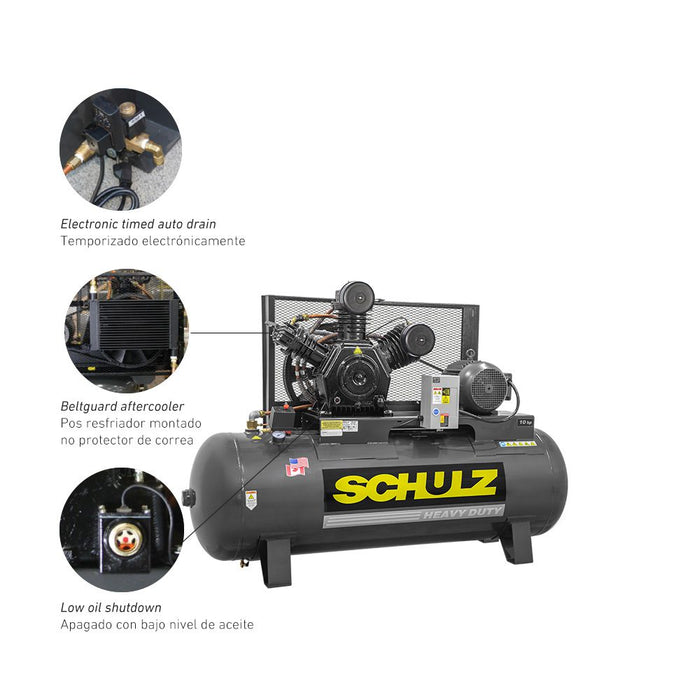

One of the key innovations in the P10120HW40X-3 Premium is the mounted belt guard aftercooler, which effectively reduces the tank’s outlet temperature. This feature significantly cuts down on the costs associated with installing additional air dryers, making your operation more efficient and cost-effective. Additionally, the compressor is equipped with oil level sensors and an automatic tank moisture drain, ensuring high-quality air and reliable performance for downstream systems.

Engineered for durability, the Schulz P10120HW40X-3 Premium features a robust cast iron construction. The powerful 10-horsepower motor delivers an air displacement of 26.5 CFM at a maximum operating pressure of 175 PSI, making it suitable for even the most demanding tasks. The two-stage, three-piston W-series design ensures efficient operation at low RPMs, reducing wear and extending the compressor’s lifespan.

Safety and reliability are at the core of the Schulz P10120HW40X-3 Premium. The ASME-certified tank, coupled with UL-certified starter components, ensures the compressor meets the highest industry safety standards. The magnetic starter is mounted and wired for ease of use, providing a ready-to-use system that enhances both convenience and safety. The compressor also includes powder-coated tanks and a solid steel belt guard, further ensuring its durability and long-term performance.

Backed by a 2-year pump warranty, the Schulz P10120HW40X-3 Premium is an excellent investment for professionals in various settings, including repair shops, service stations, tire shops, body shops, and small industrial environments.

Key Features:

• Air Displacement: 26.5 CFM
• Motor Power: 10 HP
• Maximum Operating Pressure: 175 PSI
• Voltage: 208-230/460V
• Tank Size: 120 Gallon (Horizontal)
• Compressor Type: Two-Stage, Three-Piston (W-Series)
• Efficiency: Mounted belt guard aftercooler reduces air outlet temperature, lowering air dryer costs
• Reliability: Equipped with oil level sensors and automatic tank moisture drain for consistent performance
• Durability: High-quality cast iron construction with powder-coated tanks and solid steel belt guard
• Safety: ASME-certified tanks, UL-certified starter components
• Convenience: Magnetic starter mounted and wired for easy installation and operation
• Warranty: 2-Year Pump Warranty
• Recommended For: Repair shops, service stations, tire shops, body shops, and small industries

Choose the Schulz P10120HW40X-3 Premium for a dependable, high-performance air compressor that meets the rigorous demands of your business. Trust Schulz to deliver superior quality and efficiency in every compressed air solution.
