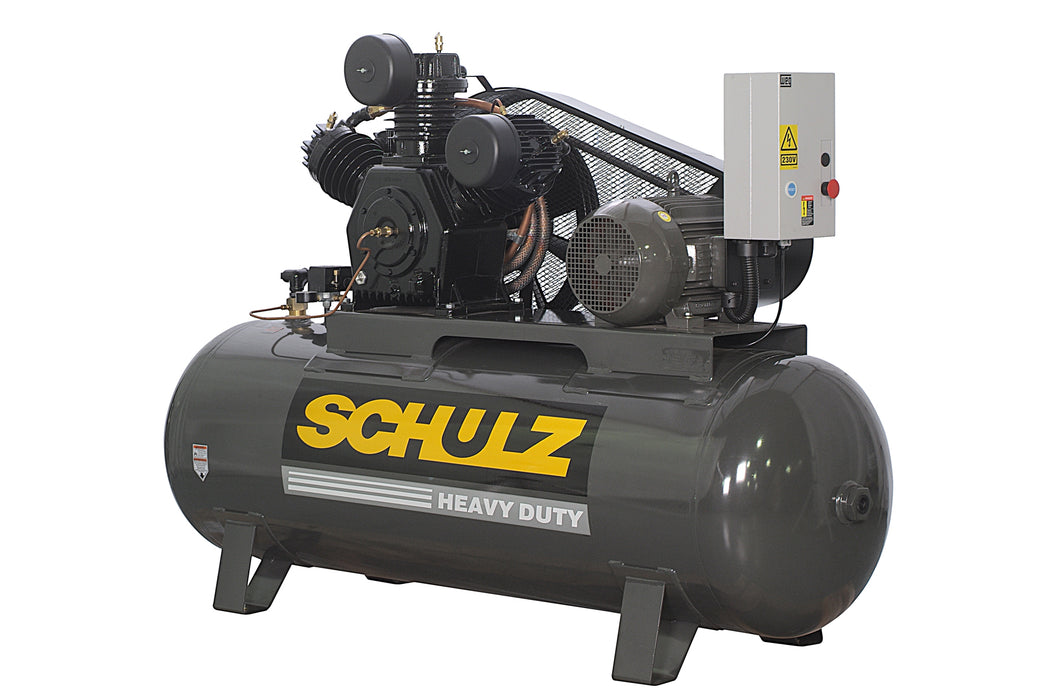

Schulz P15120HW60X-3 Premium Heavy Duty Horizontal Piston Air Compressor

The Schulz P15120HW60X-3 Premium air compressor is a powerful, reliable solution for businesses that demand the best in compressed air performance. As part of Schulz’s Premium Line, this compressor is engineered for superior efficiency, convenience, and safety, making it ideal for a wide range of professional applications.

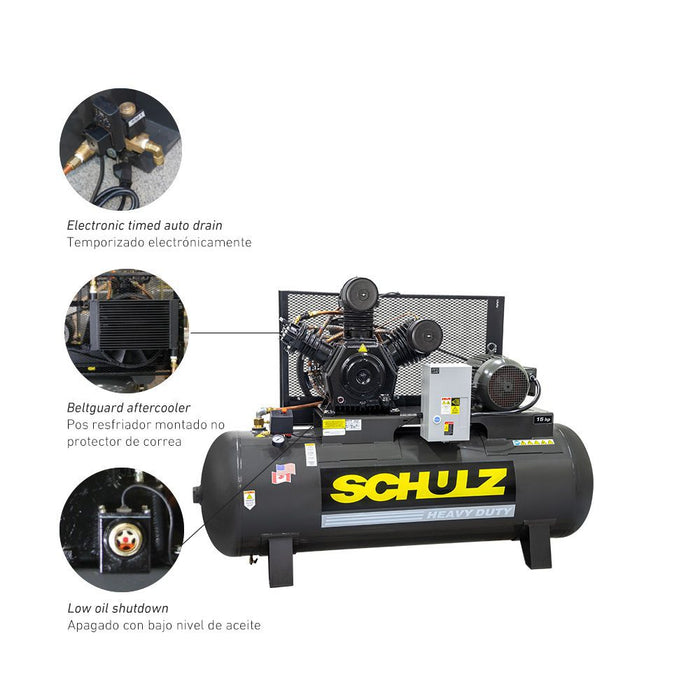

One of the standout features of the P15120HW60X-3 Premium is its mounted belt guard aftercooler, which effectively reduces the tank’s outlet temperature. This innovation helps lower operational costs by minimizing the need for additional air dryers. The compressor also comes equipped with oil level sensors and an automatic tank moisture drain, ensuring high-quality air output and reliable performance across downstream systems.

Built with durability in mind, the compressor features robust cast iron construction, designed to withstand the rigors of continuous operation. The powerful 15-horsepower motor provides an impressive air displacement of 45.6 CFM at a maximum operating pressure of 175 PSI, making it suitable for heavy-duty tasks. The two-stage, three-piston W-series design operates at low RPMs, which reduces wear and extends the life of the compressor.

Safety is a top priority with the Schulz P15120HW60X-3 Premium. The ASME-certified tank, along with UL-certified starter components, ensures compliance with industry safety standards. The magnetic starter is mounted and wired for easy installation, providing a ready-to-use system that enhances both convenience and safety. Additionally, the compressor is equipped with powder-coated tanks and a solid steel belt guard for added protection and durability.

Backed by a 2-year pump warranty, the Schulz P15120HW60X-3 Premium is an excellent investment for various professional settings, including repair shops, service stations, tire shops, body shops, and small industrial environments.

Key Features:

• Air Displacement: 45.6 CFM
• Motor Power: 15 HP
• Maximum Operating Pressure: 175 PSI
• Voltage: 208-230/460V
• Tank Size: 120 Gallon (Horizontal)
• Compressor Type: Two-Stage, Three-Piston (W-Series)
• Efficiency: Mounted belt guard aftercooler reduces air outlet temperature, lowering air dryer costs
• Reliability: Equipped with oil level sensors and automatic tank moisture drain for consistent performance
• Durability: High-quality cast iron construction with powder-coated tanks and solid steel belt guard
• Safety: ASME-certified tanks, UL-certified starter components
• Convenience: Magnetic starter mounted and wired for easy installation and operation
• Warranty: 2-Year Pump Warranty
• Recommended For: Repair shops, service stations, tire shops, body shops, and small industries

Choose the Schulz P15120HW60X-3 Premium for a high-performance, reliable air compressor that meets the rigorous demands of your business. Trust Schulz to deliver superior quality and efficiency in every compressed air solution.
