SPX Hankison NGF Replacement Filter Elements, F02 - F16

Original price $0
Original price $105.00 - Original price $679.00
Original price
Current price $105.00
$105.00 - $679.00
Current price $105.00

Model: SF-02

SKU 5005428
Filter Model: F02
Filter Grade: SF - Bulk Liquid Removal
Buy now with ShopPay

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

These are the Replacement Filter Elements made by the Original Equipment Manufacturer.  They are an exact replacement to  what originally came with The SPX Hankison NGF Filters.

Specifications:

SF - Bulk Liquid Removal

SF: Bulk Liquid Removal. 0.8 PSIG Dry Pressure Drop and a 1.0 PSIG Wetted Pressure Drop. 3.0 µm Particle Retention Size, 50% Oil removal Efficiency, 5.0 mg/m³ Maximum Remaining Oil Content. Class 3 Solids ISO Quality and Class 5 Oil ISO Quality. SF: Bulk Liquid Removal. 0.8 PSIG Dry Pressure Drop and a 1.0 PSIG Wetted Pressure Drop. 3.0 µm Particle Retention Size, 50% Oil removal Efficiency, 5.0 mg/m³ Maximum Remaining Oil Content. Class 3 Solids ISO Quality and Class 5 Oil ISO Quality.

PF - Particulate Removal

PF: Particulate Removal. 0.6 PSIG Dry Pressure Drop and a 1.4 PSIG Wetted Pressure Drop. 1.0 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 80% Oil removal Efficiency, 2.0 mg/m³ Maximum Remaining Oil Content. Class 2 Solids ISO Quality and Class 4 Oil ISO Quality. PF: Particulate Removal. 0.6 PSIG Dry Pressure Drop and a 1.4 PSIG Wetted Pressure Drop. 1.0 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 80% Oil removal Efficiency, 2.0 mg/m³ Maximum Remaining Oil Content. Class 2 Solids ISO Quality and Class 4 Oil ISO Quality.

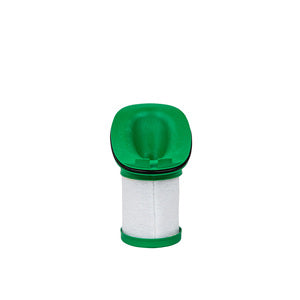

HF - Oil Removal

HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality. HF: Oil Removal. 0.6 PSIG Dry Pressure Drop and a 1.8 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, 99.9% Oil removal Efficiency, < 0.01 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality.

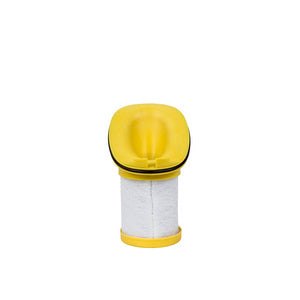

UF - High Efficiency Oil Removal

UF: High Eff. Oil Removal. 0.8 PSIG Dry Pressure Drop and a 2.0 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.9999+% Particle Removal Efficiency, 99.99% Oil removal Efficiency, < 0.001 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality. UF: High Eff. Oil Removal. 0.8 PSIG Dry Pressure Drop and a 2.0 PSIG Wetted Pressure Drop. 0.01 µm Particle Retention Size, 99.9999+% Particle Removal Efficiency, 99.99% Oil removal Efficiency, < 0.001 mg/m³ Maximum Remaining Oil Content. Class 1 Solids ISO Quality and Class 1 Oil ISO Quality.

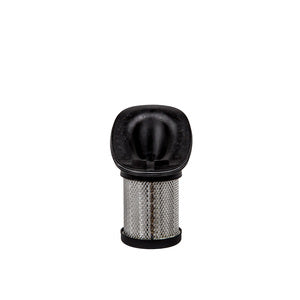

CF - Oil Vapor / Odor Removal

CF: Oil Vapor Removal. 1.0 PSIG Dry Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, < 0.004 mg/m³ Maximum Remaining Oil Content (as a vapor). Class 1 Solids ISO Quality and Class 1 Oil ISO Quality (as a vapor). CF: Oil Vapor Removal. 1.0 PSIG Dry Pressure Drop. 0.01 µm Particle Retention Size, 99.999+% Particle Removal Efficiency, < 0.004 mg/m³ Maximum Remaining Oil Content (as a vapor). Class 1 Solids ISO Quality and Class 1 Oil ISO Quality (as a vapor).
