Description

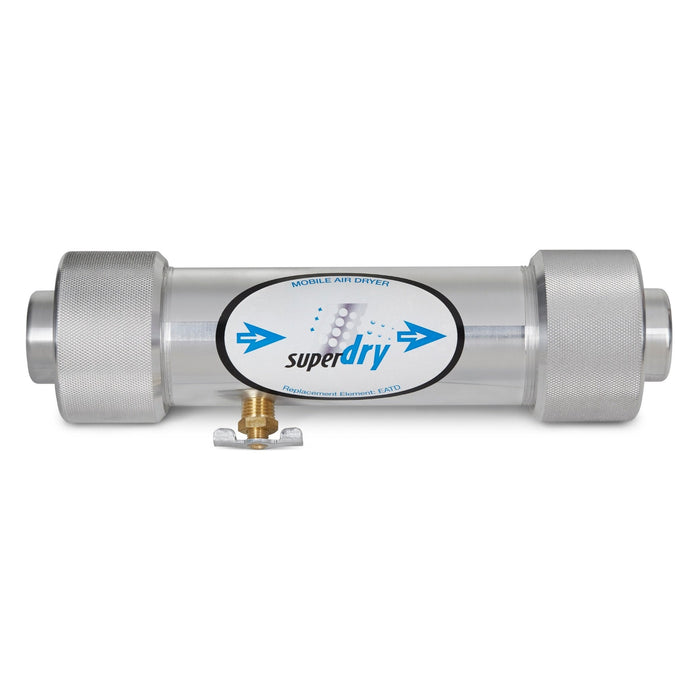

The ATD Series is an in-line compressed air dryer designed for point-of-use applications.  The in-line dryer will remove water and moisture from compressed air, making it perfect for air tools, pneumatic equipment or instruments requiring dry air.  When used in a cold environment, it will prevent nail guns from freezing.  The cartridge consists of activated alumina in a sewed bag.  Replacing the In-line Dryer cartridge is a quick procedure. No tools are needed and there is no handling of desiccant involved. The dryer is perfect for intermittent use and offers a very low pressure drop.

• INLET / OUTLET PORTS: 1/2" NPT

• AIR FLOW @ 100 PSIG: 44 SCFM

• MAXIMUM INLET PRESSURE: 150 PSIG

• MAXIMUM INLET TEMPERATURE: 100°F (38°C)

• DRAIN COCK INCL.

Click Here To Download Super-Dry ATD Brochure
